1.5 m³
TY

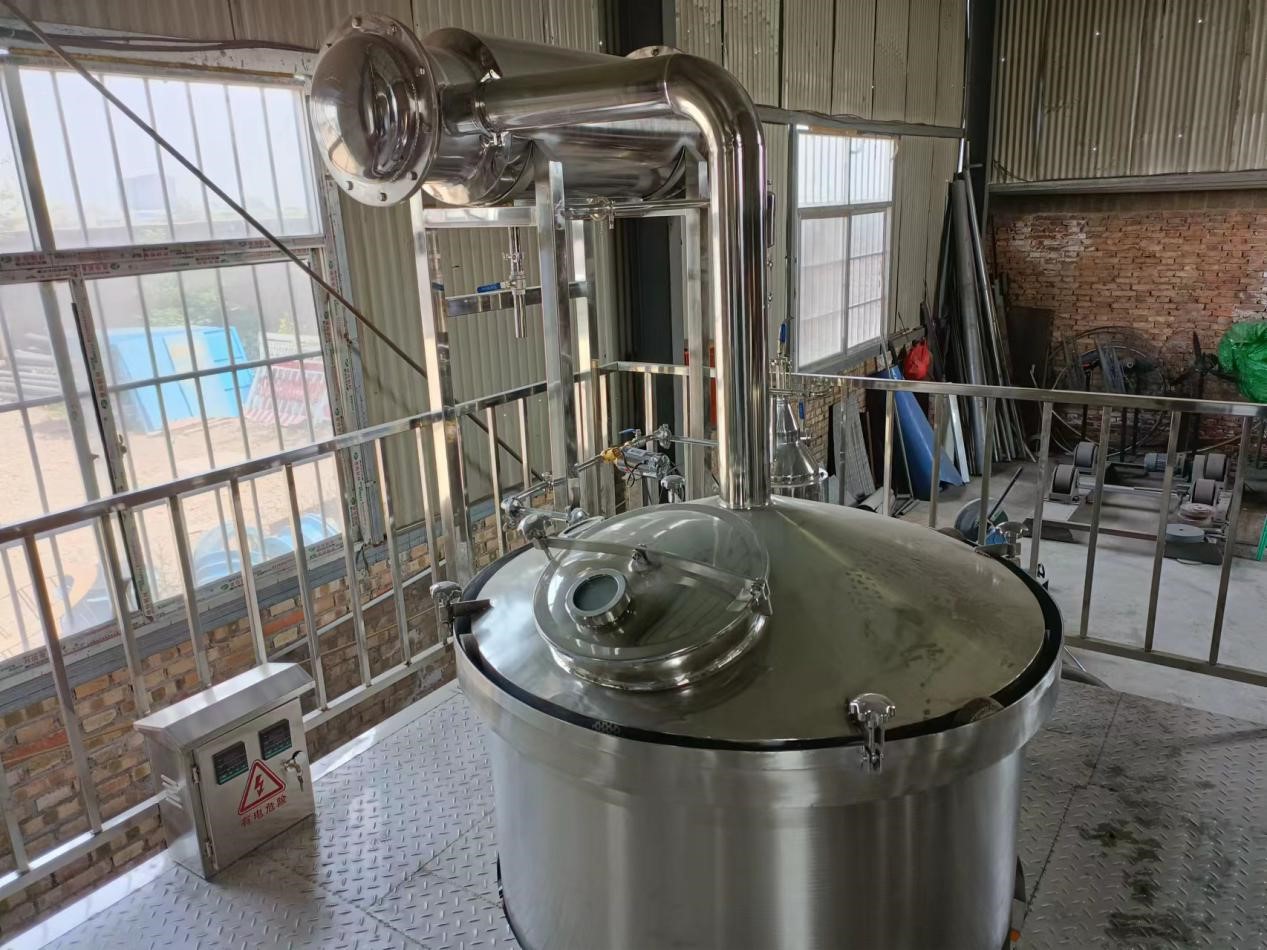

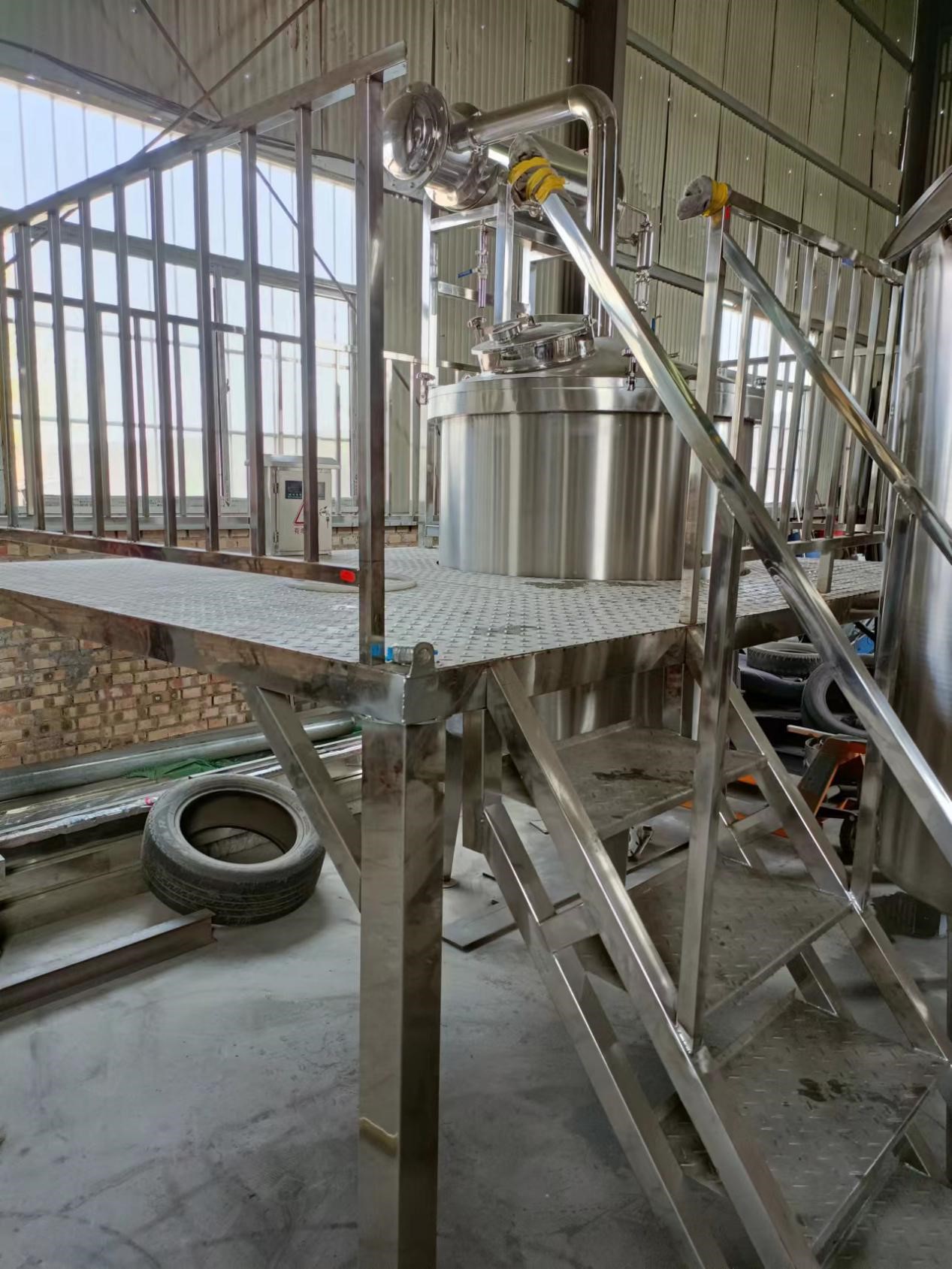

The extractor consists of a distillation kettle, rectification device, tubular heating layer, condenser, oil-water separator, reflow system, operating floor, material hoist, observation hole, steam valve, electric slag discharger, temperature digital readout controller as well as a built-in material basket and a water distiller.
Featuring steam heating, this equipment is made of SUS304 high-quality stainless steel, including a built-in tubular heating layer.

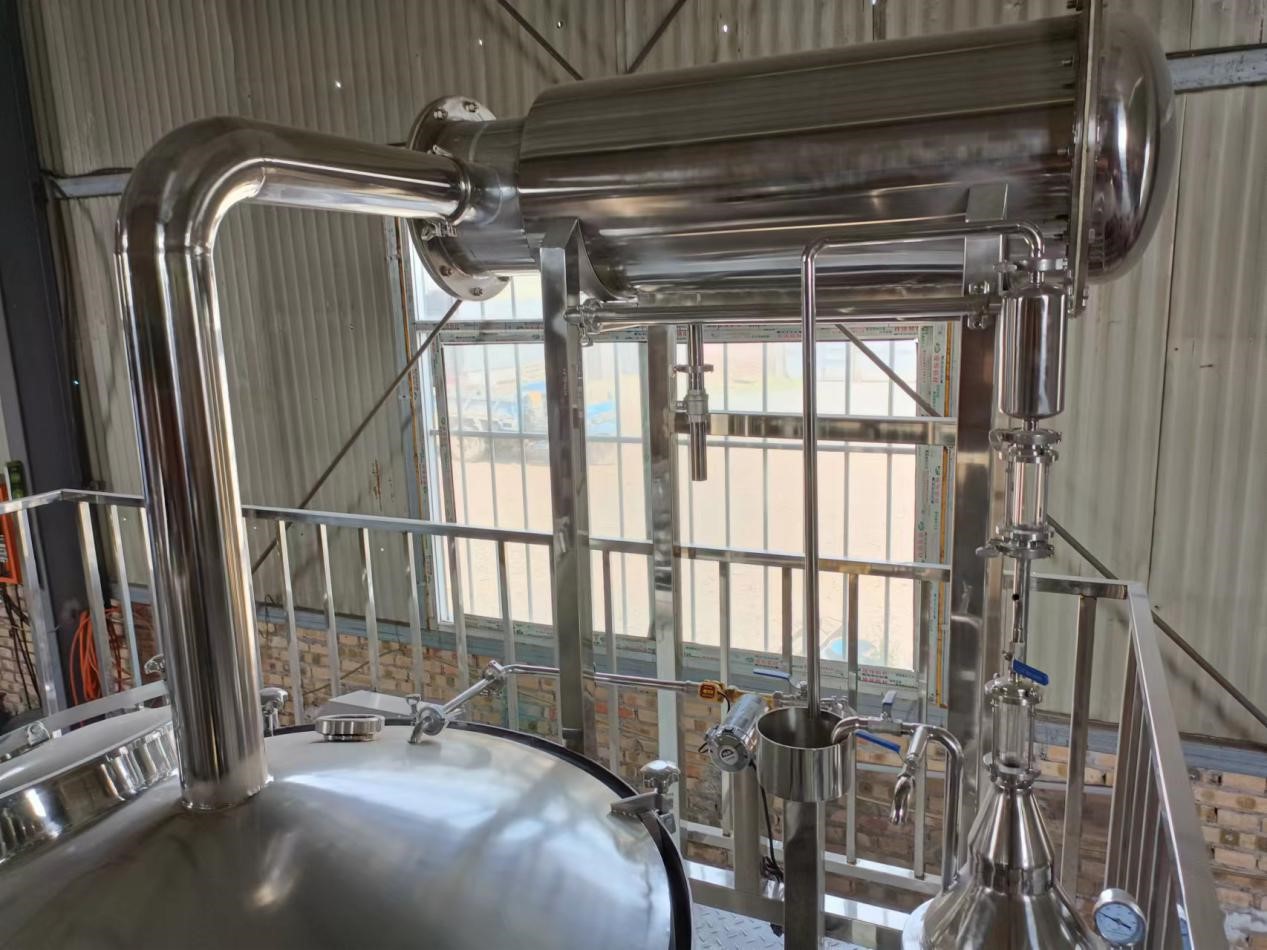

Condenser: horizontal type, heat transfer area is greater than 8 ㎡ with a double-layer jacket structure.

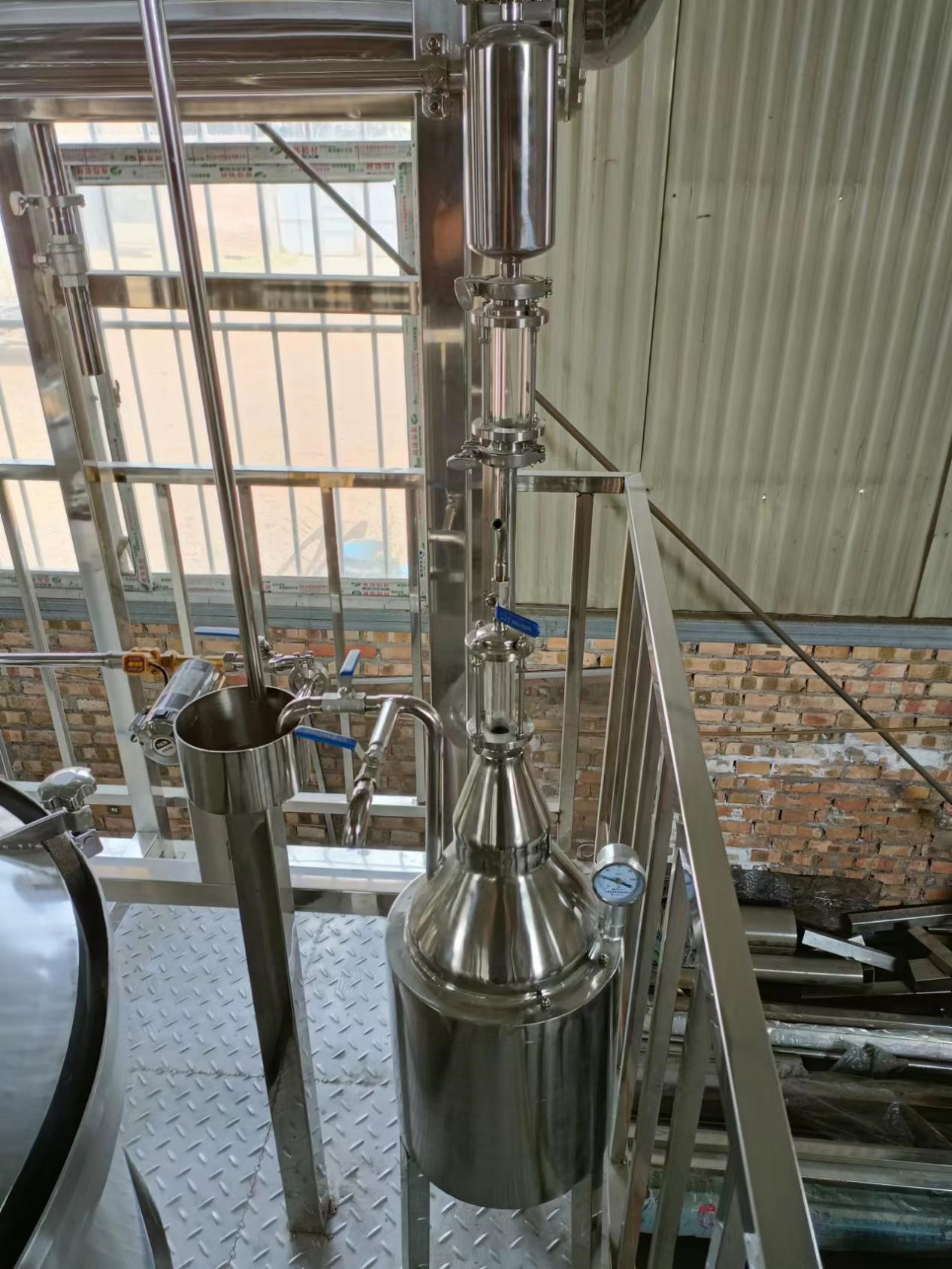

Oil-water separator: 25L in volume
Internal and external surfaces polished without sanitary dead angle; the appearance is clean; the manufacturing and installation of the equipment all meet the requirements for the production process.
The whole pipeline is covered with glass so that the material has zero contact with air throughout.
The extractor consists of a distillation kettle, rectification device, tubular heating layer, condenser, oil-water separator, reflow system, operating floor, material hoist, observation hole, steam valve, electric slag discharger, temperature digital readout controller as well as a built-in material basket and a water distiller.
Featuring steam heating, this equipment is made of SUS304 high-quality stainless steel, including a built-in tubular heating layer.
Condenser: horizontal type, heat transfer area is greater than 8 ㎡ with a double-layer jacket structure.
Oil-water separator: 25L in volume
Internal and external surfaces polished without sanitary dead angle; the appearance is clean; the manufacturing and installation of the equipment all meet the requirements for the production process.
The whole pipeline is covered with glass so that the material has zero contact with air throughout.
